Lindy 70m Cat6 DVI-D Single Link Extender

DVI-D single link extension over one Cat6 cable

A compact transmitter and receiver pair that carries DVI-D single link video over one Cat5e or Cat6 cable.

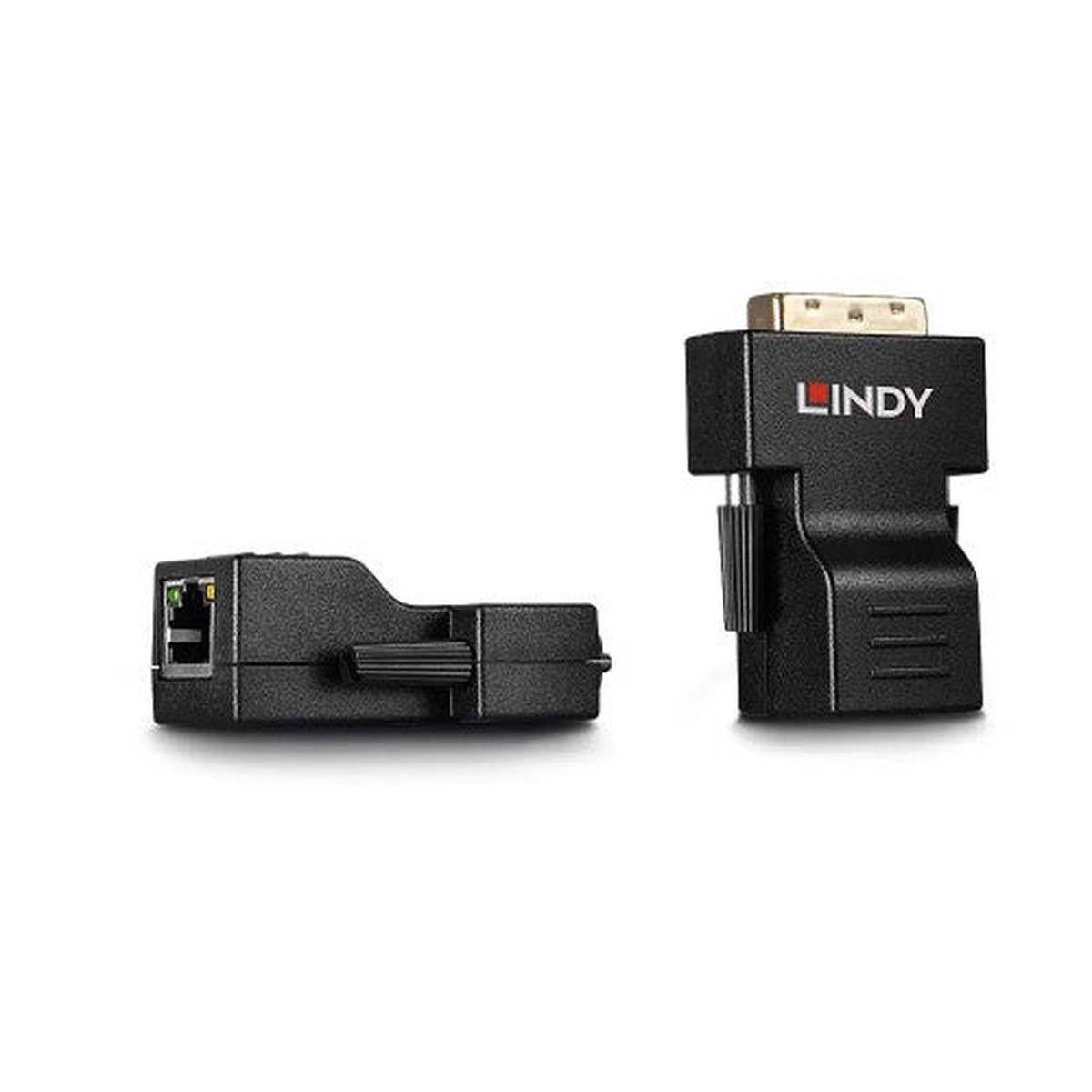

The Lindy 70m Cat6 DVI-D Single Link Extender links a DVI source to a DVI display through a single Cat5e or Cat6 cable, using slim RJ45 connectors in place of bulky DVI leads. Distance depends on resolution: 70m at 800×600, 65m at 1024×768, and 50m from 1280×1024 up to 1920×1200. Both units have plastic housings measuring 55x40x22mm.

Reference Lindy 38300 or our code DS38300 on your order. Supplied are the transmitter, receiver, a USB Micro-B to DC adapter cable and a Lindy manual; the Cat5e or Cat6 patch cable is sold separately. Normal use needs no external power, though the transmitter accepts it when a graphics card supplies too little. Lindy backs it with a 2 year warranty.

The slim RJ45 connectors allow flexibility not possible with larger DVI connectors and cables. For more video extension hardware see Cable Extenders and Cable Extenders & Converters, or browse Cables & Networking for patch leads.
